LPSSH-030-50-1F3
SKU: 10100140
Description

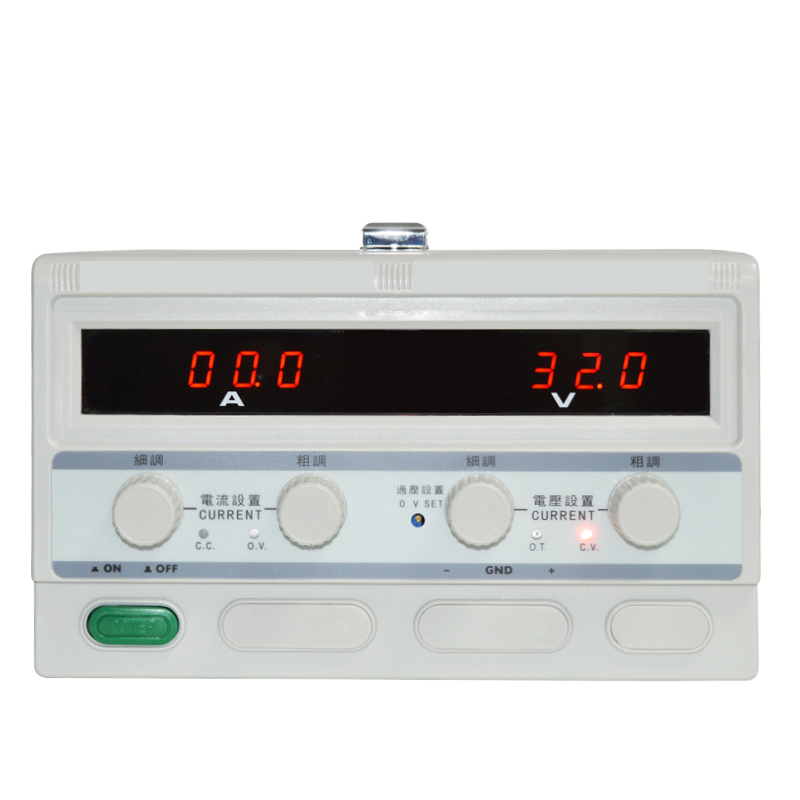

Fuente de alimentación de laboratorio, 0...30 V | 0...50 A, número de salidas 1, tipo conmutado, programable No, ajuste fino Sí, pantalla de potencia No, dígitos de visualización 3, USB 5 V 2 A
Price per unit
€543.50 excluding VAT
Stock status
Available On Backorder
Technical Data
DC current accuracy(FS)
< 0.5%
DC voltage line regulation ±10%(FS)
< 0.5%
Number of outputs
1
Operating relative humidity
< 80%
Operating temperature
-10 °C - 40 °C
Ripple I mArms
120 mArms
Ripple U mVrms
80 mVrms
Storage relative humidity
< 80%
Storage temperature
-20 °C - 80 °C
Power Supply Type
Switching
Output Voltage DC
0...30 V
Output Current DC
0...50 A
Voltage and current
DC voltage load regulation 0-100%(FS)
< 1%
Fine adjustment
Yes
Input voltage
110 VAC 60Hz or 220 VAC 50 Hz
DC current line regulation ±10%(FS)
< 0.50%
DC current load regulation 0-100%(FS)
< 0.5%
DC voltage accuracy(FS)
< 0.5%
Display
Display digits
3
Power display
No
Device configuration
Model name
LPSSH
Cable plug
EU plug
Programmable
Programmable
No
USB ports
USB Ports
No
Weight & dimensions
Weight
11 Kg
